FOX JR

FOR SPRAYING

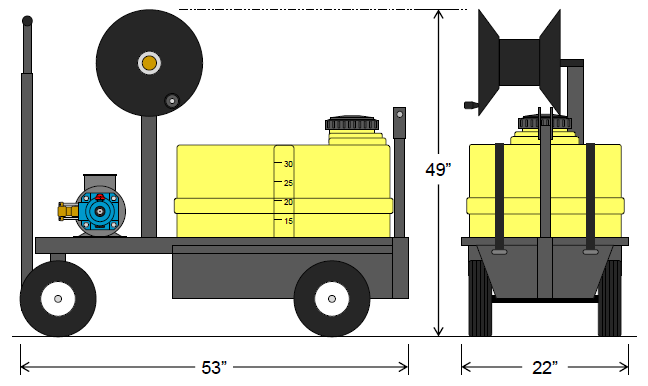

FOX FRAME/TANK WITH KRUSER PUMP/MOTOR/HOSE/REEL

35 GALLON TANK WITH SUMP

UP TO 750 PSI - UP TO 1.5 GPM

120 V - 1 HP BALDOR MOTOR

2SF CAT DIRECT DRIVE PUMP (BRASS OR STAINLESS STEEL)

CONSTANT AGITATION

100' OF 1/4" WIRE BRAID HOSE (150' CAPACITY ON HOSE REEL)

12' ELECTRICAL CORD

10" SOLID RUBBER TIRES

MODEL NUMBERS


FOX JR WITH 1 HP ELECTRIC MOTOR

FOXJR


FOX JR WITH 1 HP ELECTRIC MOTOR WITH STAINLESS STEEL PUMP AND FITTINGS

FOXJRSS


PART NUMBERS


1HP ELECTRIC MOTOR


4 HP HONDA ENGINE


2SF PUMP (BRASS)

2SF PUMP (STAINLESS STEEL)


UNLOADER (BRASS)

UNLOADER (STAINLESS STEEL)

0187500CAT

0187501


FILTER BOWL ASSEMBLY
